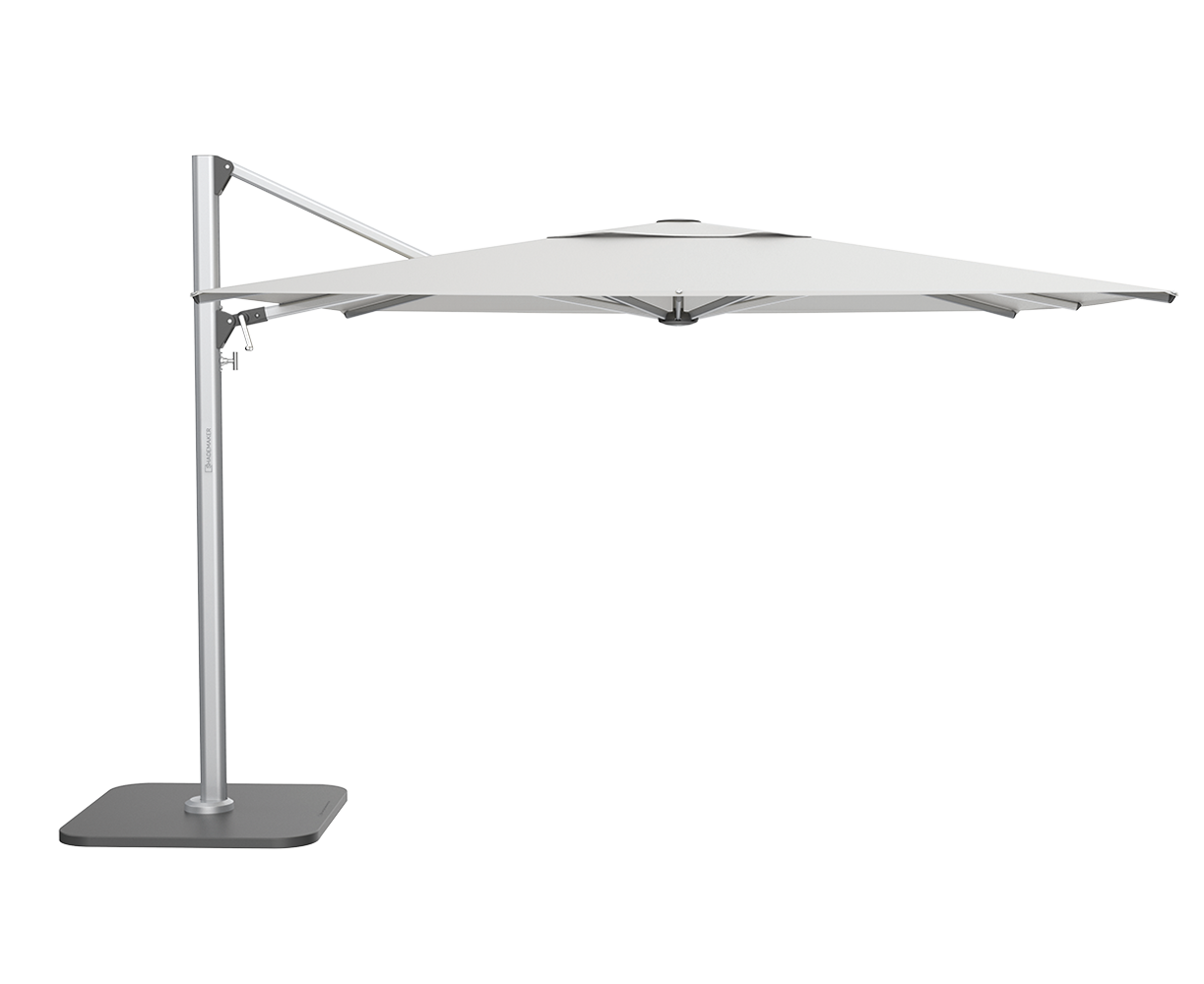

POLARIS
The Polaris is the true definition of form and function. This elegant and robust side post umbrella provides larger size ranges. With its infinite tilt functionality, sophisticated styling, and superb construction, the Polaris is one of our most popular models.
POLARIS
The Polaris is the true definition of form and function. This elegant and robust side post umbrella provides larger size ranges. With its infinite tilt functionality, sophisticated styling, and superb construction, the Polaris is one of our most popular models.
The Polaris seamlessly blends modern design and functionality, with a touch of elegance.
FEATURES
- Simple to operate infinite front to back tilt system
- 360° rotation with 8 locking positions

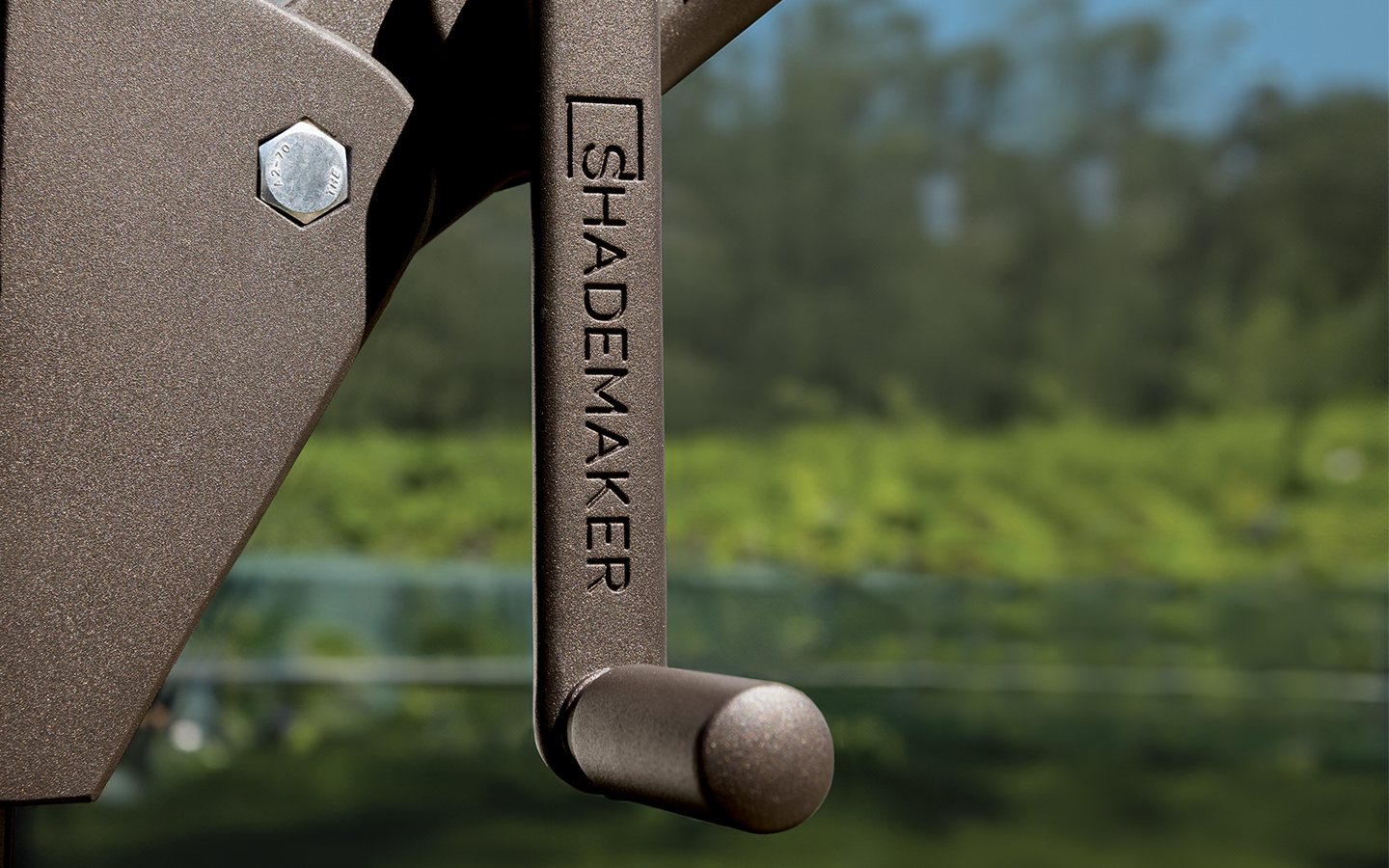

- Removable crank handle

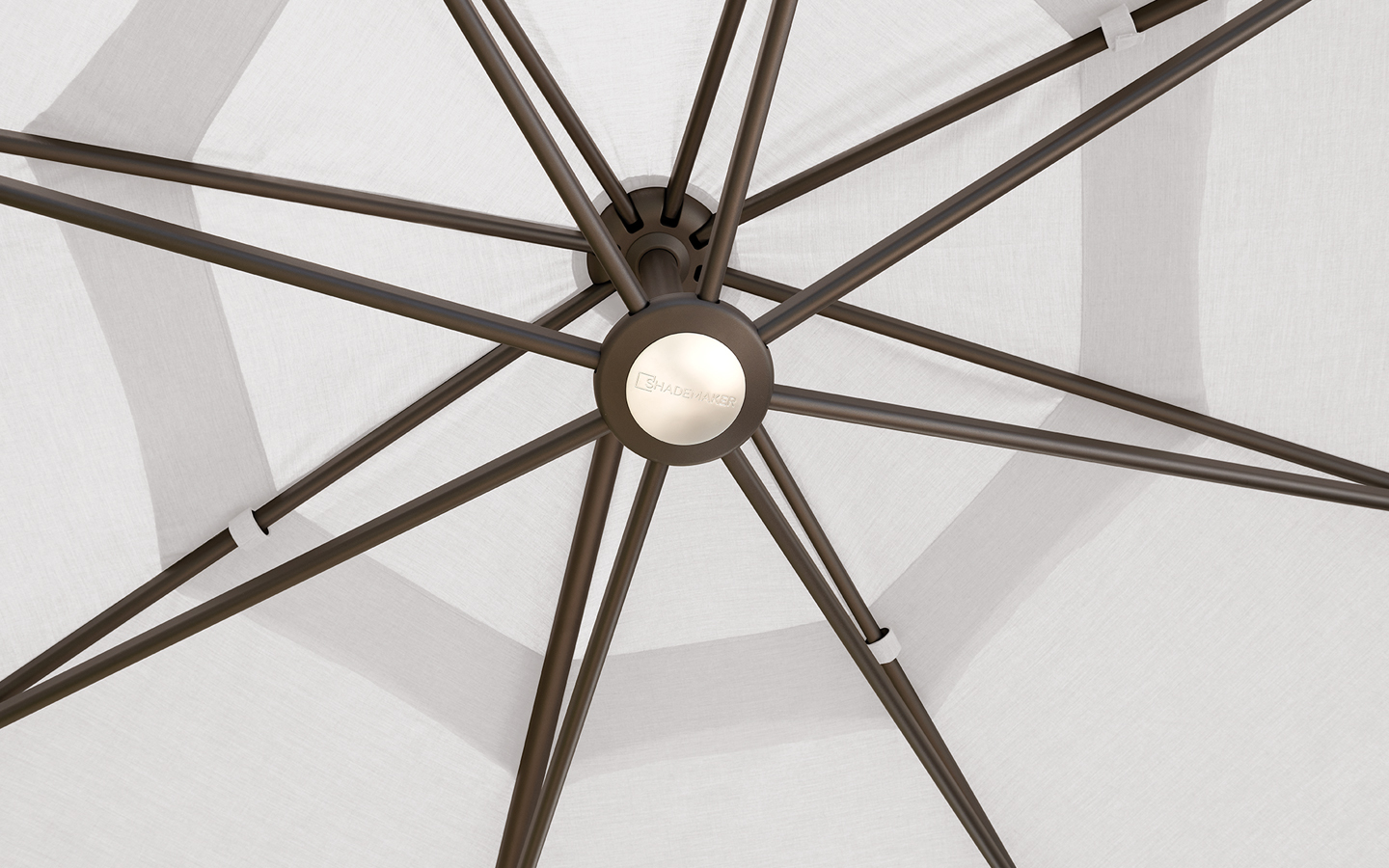

- Modernly designed aluminum hub and fittings
- Commercial grade canopy fasteners adding durability and design
- Galvanized internal mast stem
- Includes aluminum mast stem cover
- Includes high performance protective cover
Specifications
POL-35S
1’ 10” ft
0.6 m
POL-340RT
1’ 10” ft
0.6 m
POL-40
1’ 10” ft
0.6 m
POL-40S
1’ 10” ft
0.6 m
POL-35S
9’ 7” ft
2.9 m
POL-340RT
9’ 7” ft
2.9 m
POL-40
10’ 1” ft
3.1 m
POL-40S
10’ 2” ft
3.1 m
POL-35S
1’ 9” ft
0.5 m
POL-340RT
1’ 5” ft
0.4 m
POL-40
3’ 6” ft
1.0 m
POL-40S
1’ ft
0.3 m
POL-35S
9’ 6” ft
2.9 m
POL-340RT
9’ 6” ft
2.9 m
POL-40
9’ 6” ft
2.9 m
POL-40S
9’ 6” ft
2.9 m
POL-35S
1’ 10” ft
0.6 m
POL-340RT
1’ 10” ft
0.6 m
POL-40
1’ 10” ft
0.6 m
POL-40S
1’ 10” ft
0.6 m
POL-35S
6” ft
0.2 m
POL-340RT
6” ft
0.2 m
POL-40
6” ft
0.2 m
POL-40S
6” ft
0.2 m
POL-35S
7’ 6” ft
2.3 m
POL-340RT
7’ 10” ft
2.4 m
POL-40
7’ 7” ft
2.3 m
POL-40S
7’ 8” ft
2.3 m
POL-35S
7’ 6” ft
2.3 m
POL-340RT
7’ 7” ft
2.3 m
POL-40
7’ 6” ft
2.3 m
POL-40S
7’ 5” ft
2.3 m
POL-35S
9’ 1” ft
2.8 m
POL-340RT
9’ 7” ft
2.9 m
POL-40
9’ 3” ft
2.8 m
POL-40S
9’ 4” ft
2.8 m
POL-35S
3’ 3” ft
1.0 m
POL-340RT
3’ 9” ft
1.1 m
POL-40
3’ ft
0.9 m”
POL-40S
3’ ft
0.9 m
POL-35S
14’ 8” ft
4.5 m
POL-340RT
13’ 7” ft
4.1 m
POL-40
16’ ft
4.9 m
POL-40S
16’ ft
4.9 m
POL-35S
12’ 10” ft
4.0 m
POL-340RT
11’ 3” ft
3.4 m
POL-40
14’ 4” ft
4.4 m
POL-40S
14’ 4” ft
4.4 m
POL-35S
16’ 3” ft
5.0 m
POL-340RT
16’ 5” ft
5.0 m
POL-40
13’ 1” ft
4.0 m
POL-40S
18’ 4” ft
5.6 m
POL-35S
11’ 6” ft
3.5 m
POL-340RT
13’ 1” ft
4.0 m
POL-40
12’ 1” ft
3.7 m
POL-40S
13’ 1” ft
4.0 m
POL-35S
12’ 10” ft
4.0 m
POL-340RT
11’ 3” ft
3.4 m
POL-40
14’ 4” ft
4.4 m
POL-40S
14’ 4” ft
4.4 m
POL-35S
16’ 3” ft
5.0 m
POL-340RT
16’ 5” ft
5.0 m
POL-40
13’ 1” ft
4.0 m
POL-40S
8’ 9” ft
2.7 m
POL-35S
11’ 6” ft
3.5 m
POL-340RT
13’ 1” ft
4.0 m
POL-40
12’ 1” ft
3.7 m
POL-40S
13’ 1” ft
4.0 m
POL-35S
12’ 10” ft
4.0 m
POL-340RT
11’ 3” ft
3.4 m
POL-40
14’ 4” ft
4.4 m
POL-40S
14’ 4” ft
4.4 m
POL-35S
16’ 3” ft
5.0 m
POL-340RT
16’ 5” ft
5.0 m
POL-40
13’ 1” ft
4.0 m
POL-40S
8’ 9” ft
2.7 m
POL-35S
11’ 6” ft
3.5 m
POL-340RT
13’ 1” ft
4.0 m
POL-40
12’ 1” ft
3.7 m
POL-40S
13’ 1” ft
4.0 m
- A Lower Hub HEIGHT (Open)
- B Rib End HEIGHT (Open)
- C Canopy LENGTH (Diagonal)
- D Canopy WIDTH
- E HEIGHT to Mast Top
- F Overall HEIGHT (Closed)
- G Overall HEIGHT (Mix Tilt)
- H Rib End HEIGHT (Closed)
- I Mast End to Canopy Edge (Closed)
- J Mast End to Canopy Edge (Open)
- K HEIGHT to Canopy Top
- L HEIGHT to Crank Handle (Max Tilt)
- M HEIGHT to Turning Handle
- N Turning Handle WIDTH
| Key | Description | POL-35S | POL-340RT | POL-40 | POL-40S |
|---|---|---|---|---|---|
| Canopy Shape | Square | Rectangle | Octagon | Square | |
| Coverage | 131 sq ft | 130 sq ft | 134 sq ft | 172 sq ft | |
| Ribs | 8 | 8 | 8 | 8 | |
| Size | 11.5 ft | 3.5 m | 10 x 13 ft 3.0 m x 4.0 m |
13 ft | 4.0 m | 13 ft | 4.0 m | |
| A | Lower Hub HEIGHT(Open) | 7’ 6” ft | 2.3 m | 7’ 10” ft | 2.4 m | 7’ 7” ft | 2.3 m | 7’ 8” ft | 2.3 m |
| B | Rib End HEIGHT(Open) | 7’ 6” ft | 2.3 m | 7’ 7” ft | 2.3 m | 7’ 6” ft | 2.3 m | 7’ 5” ft | 2.3 m |
| C | Canopy LENGTH(Diagonal) | 16’ 3” ft | 5.0 m | 16’ 5” ft | 5.0 m | 13’ 1” ft | 4.0 m | 18’ 4” ft | 5.6 m |
| D | Canopy WIDTH | 11’ 6” ft | 3.5 m | 13’ 1” ft | 4.0 m | 12’ 1” ft | 3.7 m | 13’ 1” ft | 4.0 m |
| E | HEIGHT to Mast Top | 9’ 6” ft | 2.9 m | 9’ 6” ft | 2.9 m | 9’ 6” ft | 2.9 m | 9’ 6” ft | 2.9 m |
| F | HEIGHT to Canopy Top (Closed) | 9’ 7” ft | 2.9 m | 9’ 7” ft | 2.9 m | 10’ 1” ft | 3.1 m | 10’ 2” ft | 3.1 m |
| G | HEIGHT to Rib End (Max Tilt) | 14’ 8” ft | 4.5 m | 13’ 7” ft | 4.1 m | 16’ ft | 4.9 m | 16’ ft | 4.9 m |
| H | Rib End HEIGHT(Closed) | 1’ 9” ft | 0.5 m | 1’ 5” ft | 0.4 m | 3’ 6” ft | 1.0 m | 1’ ft | 0.3 m |
| I | Mast End to Canopy Edge(Closed) | 1’ 10” ft | 0.6 m | 1’ 10” ft | 0.6 m | 1’ 10” ft | 0.6 m | 1’ 10” ft | 0.6 m |
| J | Mast End to Canopy Edge(Open) | 12’ 10” ft | 4.0 m | 11’ 3” ft | 3.4 m | 14’ 4” ft | 4.4 m | 14’ 4” ft | 4.4 m |
| K | HEIGHT to Canopy Top (Open) | 9’ 1” ft | 2.8 m | 9’ 7” ft | 2.9 m | 9’ 3” ft | 2.8 m | 9’ 4” ft | 2.8 m |
| L | HEIGHT to Crank Handle (Max Tilt) | 3’ 3” ft | 1.0 m | 3’ 9” ft | 1.1 m | 3’ ft | 0.9 m | 3’ ft | 0.9 m |
| M | HEIGHT to Turning Handle | 1’ 10” ft | 0.6 m | 1’ 10” ft | 0.6 m | 1’ 10” ft | 0.6 m | 1’ 10” ft | 0.6 m |
| N | Turning Handle WIDTH | 6” ft | 0.2 m | 6” ft | 0.2 m | 6” ft | 0.2 m | 6” ft | 0.2 m |
| Min. Base Weight | 550 lbs. | 550 lbs. | 700 lbs. | 700 lbs. |
BASE OPTIONS
Geomet Steel Base Weight
| Item No. | Finishes | Weight | Size | Thickness |
|---|---|---|---|---|
| SBGC100SQ | SS, SG | 100 lbs. | 26" | .6” |
| SBGC200SQ | SS, SG | 200 lbs. | 36" | .6" |
Titan Base
| Item No. | Finishes | Weight | Size |
|---|---|---|---|
| BGT850 | SG, AB, AW | 118.1 lbs. | 40.5" x 40.5" x 6.4" |
Galvanized Steel Frame + Aluminum Lid
* Accommodates (32) 12″x12″x1.5″ pavers. (not included)
Infinity Base
| Item No. | Finishes | Weight | Size |
|---|---|---|---|
| BXI415 | SG, AB, AW | 415 lbs. | 44.5” x 44.5" x 1.8" |
| BXI565 | SG, AB, AW | 565 lbs. | 44.5” x 44.5" x 1.8" |
| BXI715 | SG, AB, AW | 715 lbs. | 44.5” x 44.5" x 1.8" |
Galvanized Steel Frame + Aluminum Lid, Galvanized Steel Plates
MOUNTING OPTIONS
| Item No. | Description | Plate Dia. | Thickness | Weight |
|---|---|---|---|---|
| MKC23 | Concrete Mount Kit | 8.46" | .63" | 7.76 lbs |
Includes: Adapter plate and expansion bolts.
| Item No. | Description | Plate Dia. | Thickness | Weight |
|---|---|---|---|---|
| MKG23 | In-Ground Mount Kit | 8.46" | .63" | 6.62 lbs |
Includes: In-ground fitting.
